Product Description

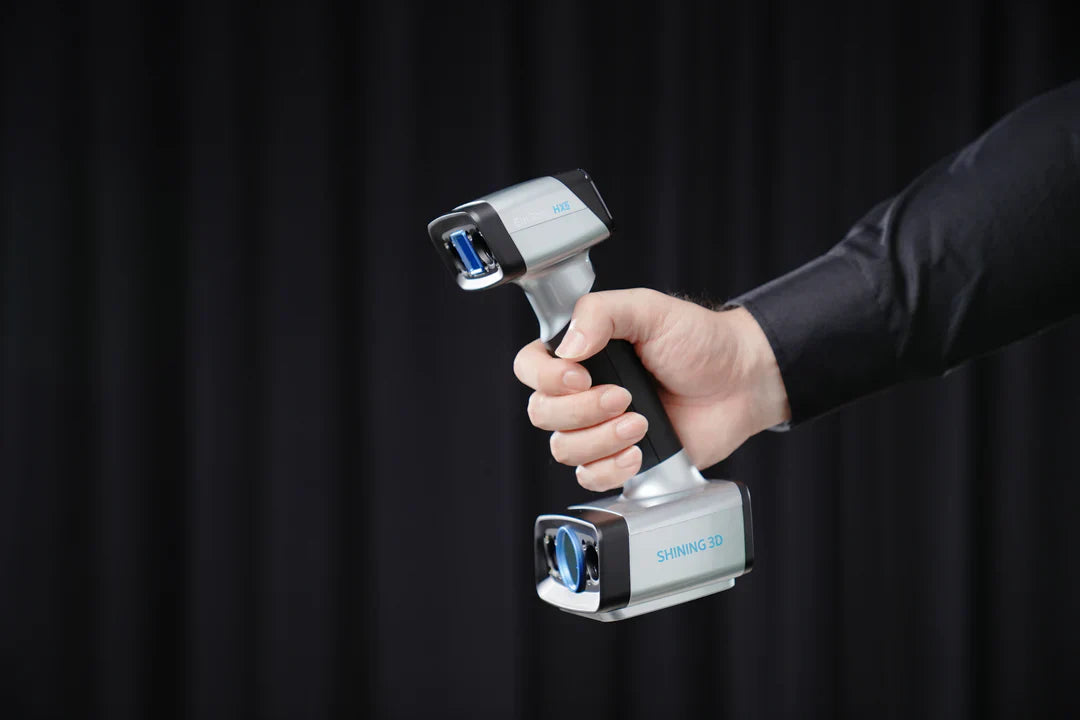

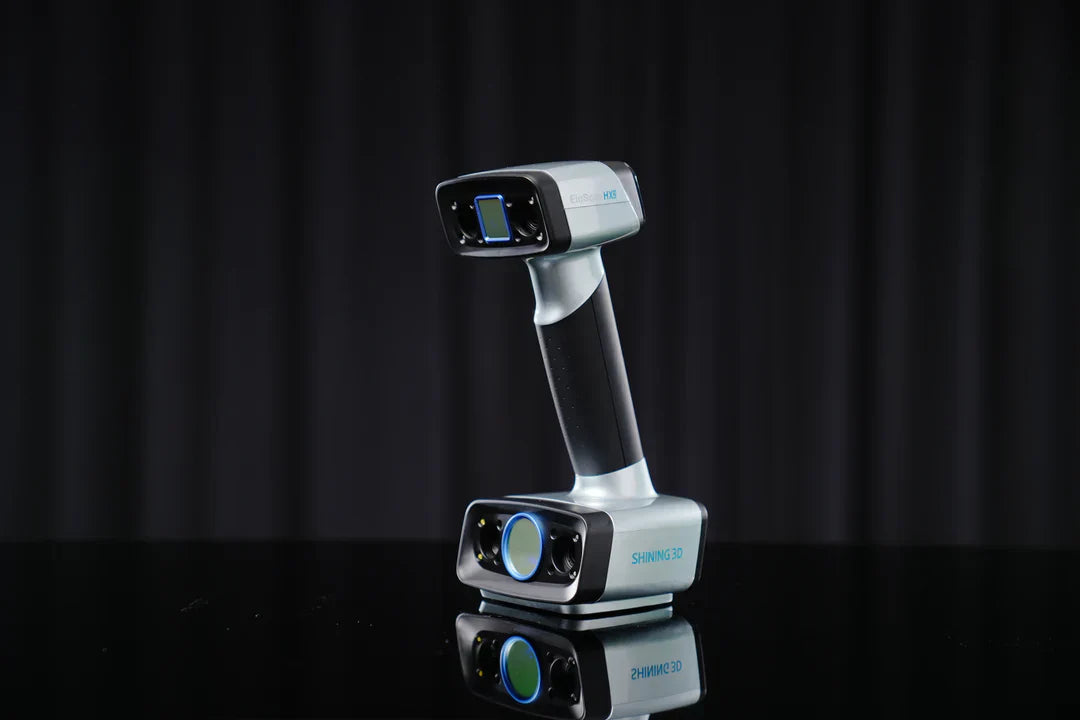

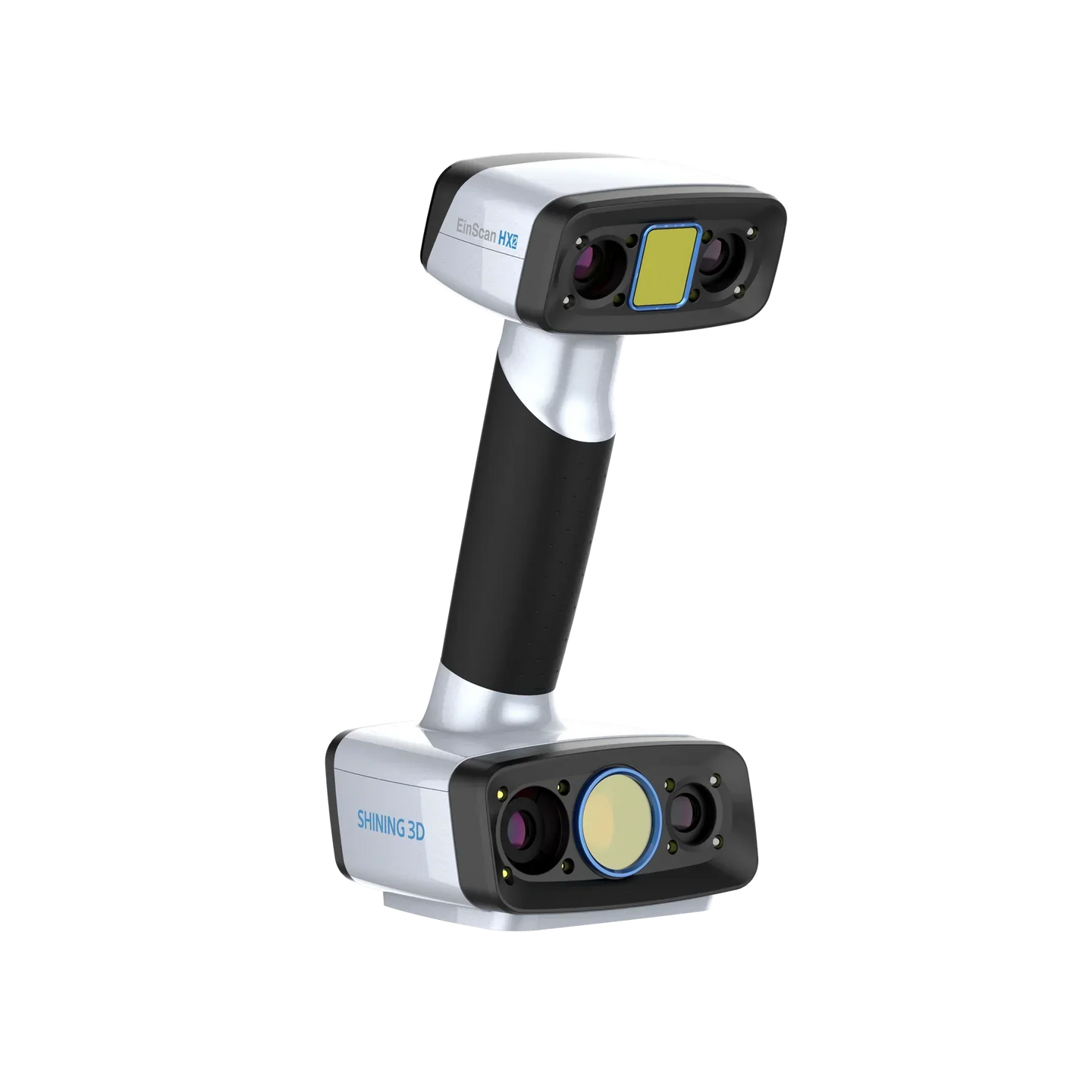

Afinia EinScan HX2 Handheld 3D Scanner - Hybrid Blue Laser & LED Light Source
• 60+% faster laser scanning compared to HX • Handheld Hybrid Blue Laser / Blue LED Scanner • Designed for dark and reflective objects • Scan large objects easily • Full color texture capture with Blue LED scanning • 0.04mm Accuracy • 0.05mm max resolution (point distance)
FEATURES
Based on years of 3D measurement experience and market demand, SHINING 3D innovatively integrates blue LED light and blue laser into EinScan HX2 handheld 3D scanner. The hybrid laser and LED light sources make EinScan HX2 compatible with a wider range of object sizes, meeting multiple needs of users. High efficiency and reliable result give EinScan HX2 more application possibilities.
Innovatively integrated with dual blue LED light and 13 crossed blue laser lines, the HX2 improves scanning materials adaptability with less limitation for a wider range of applications. LED light scanning allows rapid 3D scanning. Laser scanning, which is less sensitive to ambient light, gives better performance to reflective and dark color surface.
The high resolution and accuracy meet the needs of most industrial applications for reverse engineering and measuring. - Minimum point distance 0.05 mm - Accuracy up to 0.04 mm under Laser Scan.
Processing speed of EinScan HX2 under Rapid Scan Mode is up to 1,200,000 points/s, while the 13 crossed blue laser lines under Laser Scan Mode capture 1,600,000 points/s. Scanning of most objects can be done in minutes for reverse engineering, CAD/CAM, 3D printing and more.
EinScan HX2 is plug and play with user friendly software, which is easy to operate, no matter you are newbie or with professional experience in 3D scanning. The portability and flexibility use of EinScan HX2 has been considered to its ergonomic design for a more efficient and comfortable scanning experience. - Ergonomic design and weight of 710g.
With built-in color camera, it supports full color texture capturing and tracking by texture.
SPECIFICATIONS
| Scan Mode | Rapid Scan | Laser Scan |
|---|---|---|
| Scan Accuracy | Up to 0.05mm | Up to 0.04mm |
| Volumetric Accuracy* | 0.05+0.1mm/m | 0.04+0.06mm/m |
| Scan Speed |
1,200,000 points/s 20FPS |
1,600,000 points/s 120FPS |
| Camera Frame Rate | 20 FPS | 120 FPS |
| Align Mode | Feature Alignment/Markers Alignment/Texture Alignment/Hybrid Alignment | Markers Alignment |
| Working Distance | 470mm | 470mm |
| Depth of Field | 200mm-700mm | 350mm-610mm |
| Max FOV | 420mm*440mm | 380mm*400mm |
| Point Distance | 0.25mm-3mm | 0.05mm-3mm |
| Light Source | Blue LED | 13 Blue Laser Crosses |
| Safety | Eye-safe | Class I(Eye-safe) |
| Built-in Color Camera | YES | |
| Texture Scan | YES | NO |
| Connection Standard | USB3.0 | |
| Output Formats | OBJ | |
| Dimensions | 108mmx110mmx237mm | |
| Weight | 710g | |
| Certifications | CE,FCC,ROHS,WEEE,KC | |
| Recommended Configuration |
OS:Win10,64 bit; Graphics card:NVIDIA RTX2060 and higher; Video memory:=6G; Processor:I7-10870H; Memory:=32GB |
|
*Volumetric accuracy refers to the relationship between 3D data accuracy and object size; the accuracy is
reduced by 0.1mm(rapid scan)/0.06mm(laser scan) per 100cm.The conclusion is obtained by measuring
the center of sphere under marker alignment.
WARRANTY
Warranty: 1-Year, Parts & Labor
